1969 CHEVELLE OR EL CAMINO DIGITAL DASH

1969 CHEVELLE OR EL CAMINO DIGITAL DASH

Replacement VFD digital dash cluster for a 1969 Chevelle or El Camino. Fits into your existing dash housing. Gauges include speedometer,tachometer,volts,oil pressure,water temperature and fuel. Gauges available either Teal or Blue.

Shown here with optional clock sold separately.

COMPLETE SPECIFICATIONS LISTED BELOW

Our Price$825.00
Retail Price $725.00
CodeDAK-25
Weight 10
Save wishlist

  • Displays included with this instrument system: Speedometer (0-255 MPH or KPH), Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level.
  • Also shown is: Odometer, Trip Odometer, Resettable Service Odometer and Hourmeter.
  • Several performance calculations include: 0-60 MPH (0-100 KPH) timer, mile timer, mile speed display, High Speed recall and High RPM recall.
  • Various Indicators can also be displayed such as: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, 4x4 (when equipped), Wait to Start (when equipped).
  • Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear. Utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 sending unit.
  • Dakota Digital instruments systems also include a Demonstration Mode which will cycle the instrument readouts while the vehicle is standing still. This is especially popular while the vehicle is on display at a show, event or simply displaying the instrument system.
  • Full Metric conversions will cycle between MPH or KPH with the press of a button. If full (Celsius & KPH) metric instrument systems are required, please specify upon ordering.
  • Necessary sensors included for oil pressure (1/8 NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2 NPT) and speedometer pulse generator.
  • Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. A universal fuel level sender, SEN-06-1, can be purchased from Dakota Digital if necessary.
  • Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
  • Built-in dimmer will reduce the display intensity as headlights/ parking lights are activated.
  • Fully adjustable warning points alert the user of potential vehicle problems.
  • Dakota Digital Instrument systems are normally shipped from the factory with "0" miles on the odometer.  If you would like mileage added to the odometer, this can be done at the factory for a charge of $20.



Please review these other products:

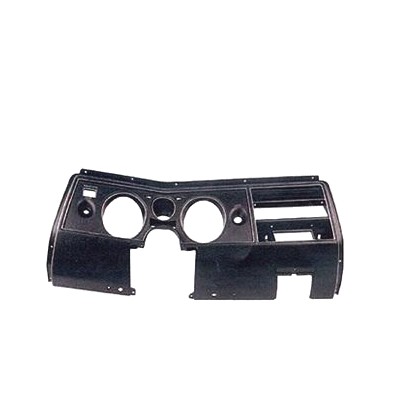

1969 CHEVELLE DASH BEZEL
Reproduction plastic dash face for a 1969 Chevelle. Molded in black. For models without AC or Astro ventilation. Our Price: $209.00

click to see more


Reproduction plastic dash face for a 1969 Chevelle. Molded in black. For models without AC or Astro ventilation.
Our Price: $209.00

click to see more

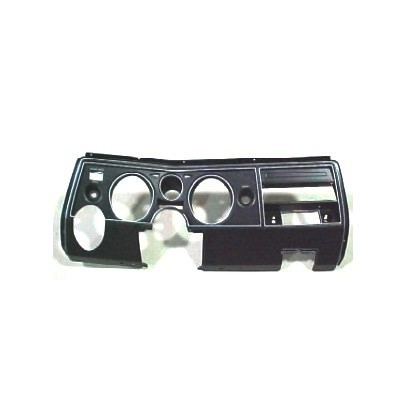

1969 CHEVELLE DASH BEZEL with ASTRO VENTILATION

Reproduction plastic dash face for a 1969 Chevelle. Molded in black. Edges are outlined in chrome like originals, not silver paint.

Additional shipping may be required for this part

 Our Price: $219.95

click to see more



Reproduction plastic dash face for a 1969 Chevelle. Molded in black. Edges are outlined in chrome like originals, not silver paint.

Additional shipping may be required for this part

Our Price: $219.95

click to see more

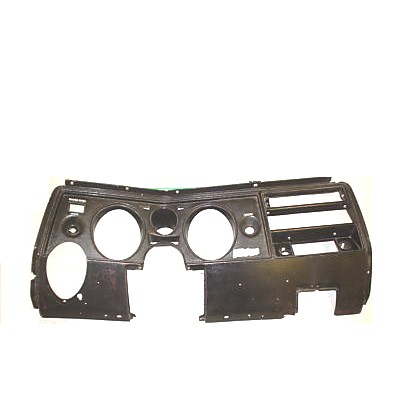

1969 CHEVELLE DASH BEZEL with AIR CONDITIONING

Reproduction plastic dash face for a 1969 Chevelle. Molded in black. Edges outlined in chrome like originals.

Additional shipping may be required for this part.

 Our Price: $219.00

click to see more



Reproduction plastic dash face for a 1969 Chevelle. Molded in black. Edges outlined in chrome like originals.

Additional shipping may be required for this part.

Our Price: $219.00

click to see more

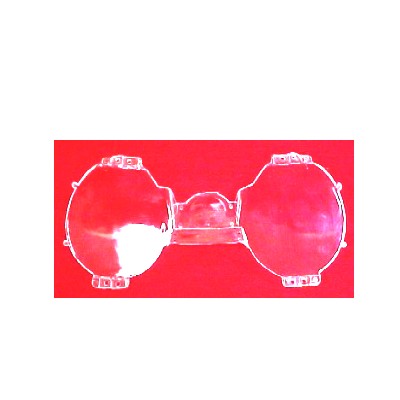

1969 CHEVELLE DASH LENS
